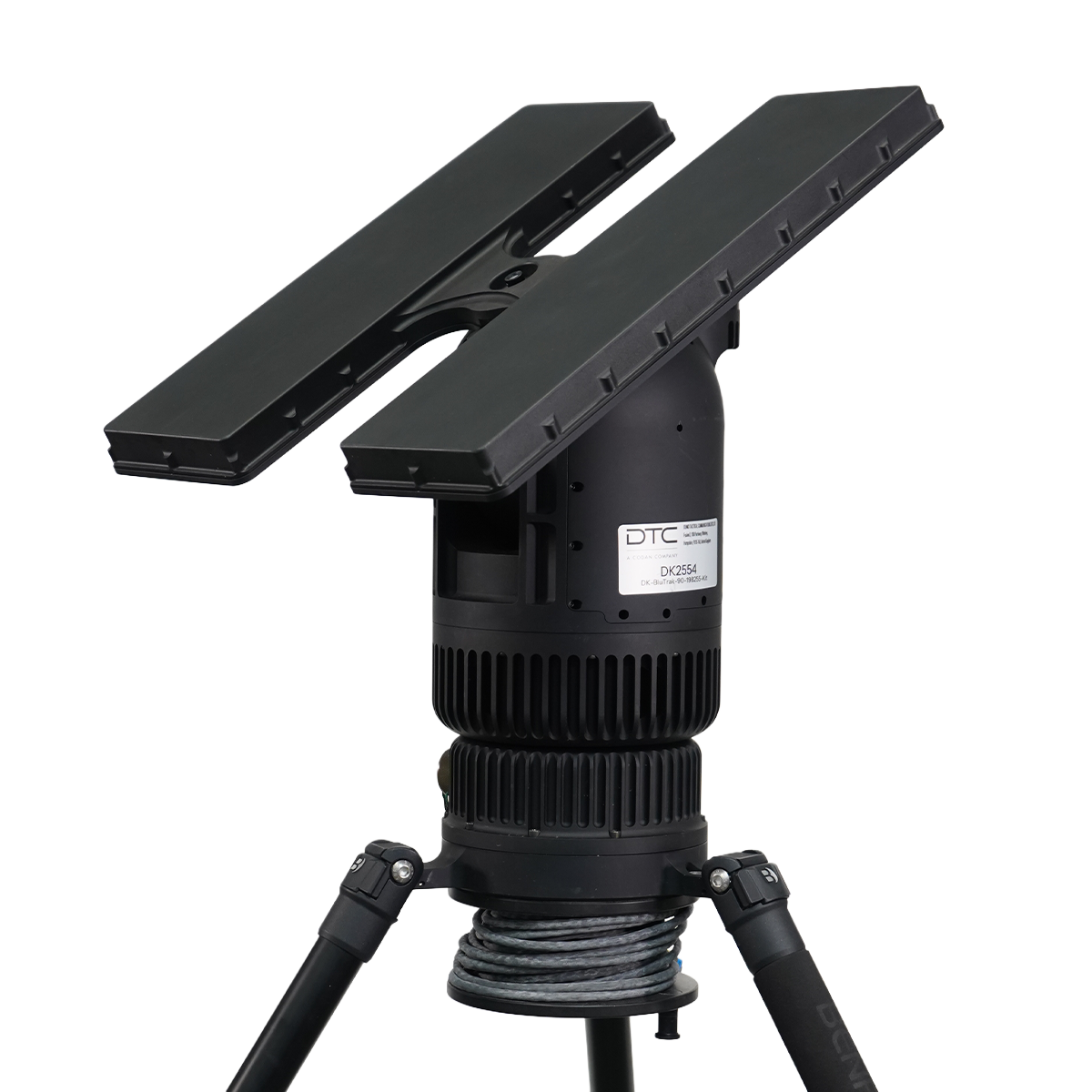

BluTrak-90 is a fully self-contained solution that allows for autonomous tracking of a UAV. BluTrak-90 features an on-board microprocessor and embedded tracking algorithms, with no requirement for external processing. Housed in a rugged IP67 rated enclosure, the system integrates a BluSDR Mesh radio with 10W total power for robust connectivity. Designed for rapid deployment, it includes a built-in tripod and cable drum, engineered to perform reliably in demanding environments. A range of quick-dock dual polarity dish antennas offers flexible deployment, including various sector antennas with options available in L, S and C bands.
On-board microprocessor and embedded tracking algorithms keep the dish on the aircraft, with no external processing and no operator input.
10W total output across two 5W COFDM transceivers, with -98dBm receive sensitivity, for long-range applications out to 90km.
MeshUltra™ MANET waveforms in a self-forming, self-healing architecture, with 87Mbps mesh capacity and adaptive modulation from BPSK to 64QAM.
360° continuous pan, 90° tilt and slew rates up to 80°/s to hold lock on fast-moving or close-passing aircraft.
Integrated IMU and internal GPS handle alignment automatically, with a mechanical compass and level for manual set-up when conditions call for it.
Integrated tripod and cable drum in a 32kg package, so the system goes from transport to tracking without separate mounting kit.

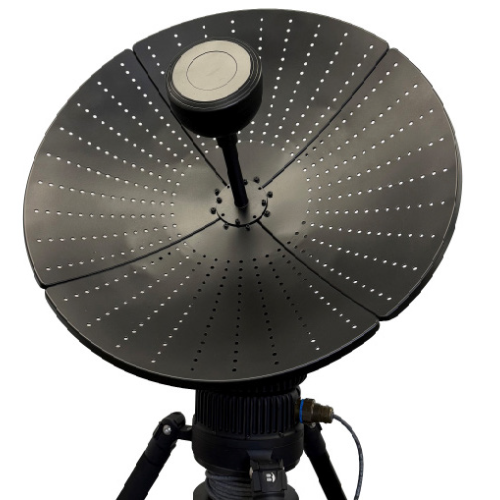

Quick-dock dual-polarity dishes at 16, 20 and 28dBi across L, S and C band, matching gain and beamwidth from 27° down to 5° to the mission.
IP67 sealed and rated -20°C to +50°C, with 128GB of on-board storage to record through the mission.
DES as standard, with AES128 and AES256 available by licence and accredited to FIPS140-2 for MeshUltra™ waveforms.
Maintains reliable UAV connectivity through autonomous tracking, reducing operator burden in demanding environments.
