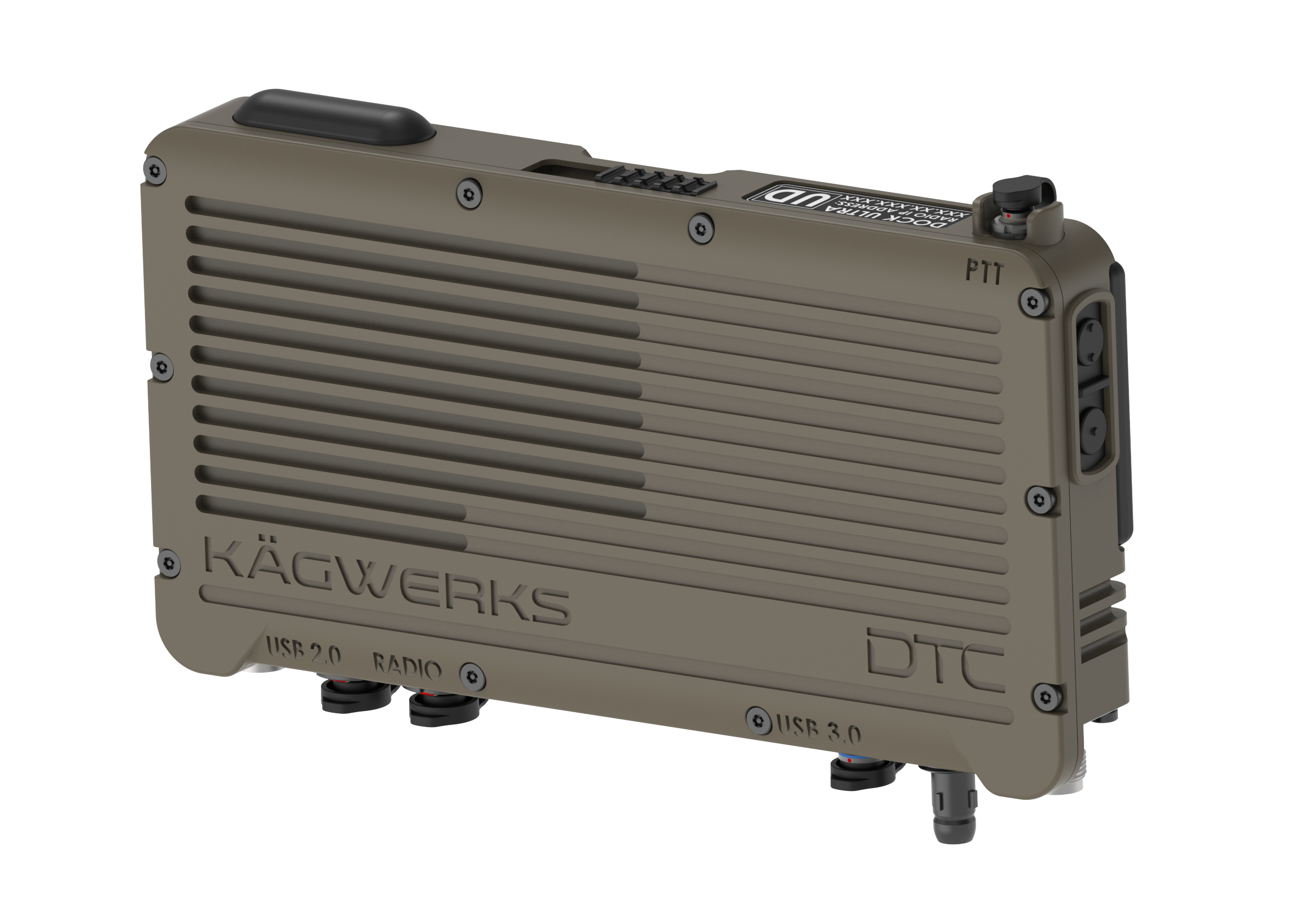

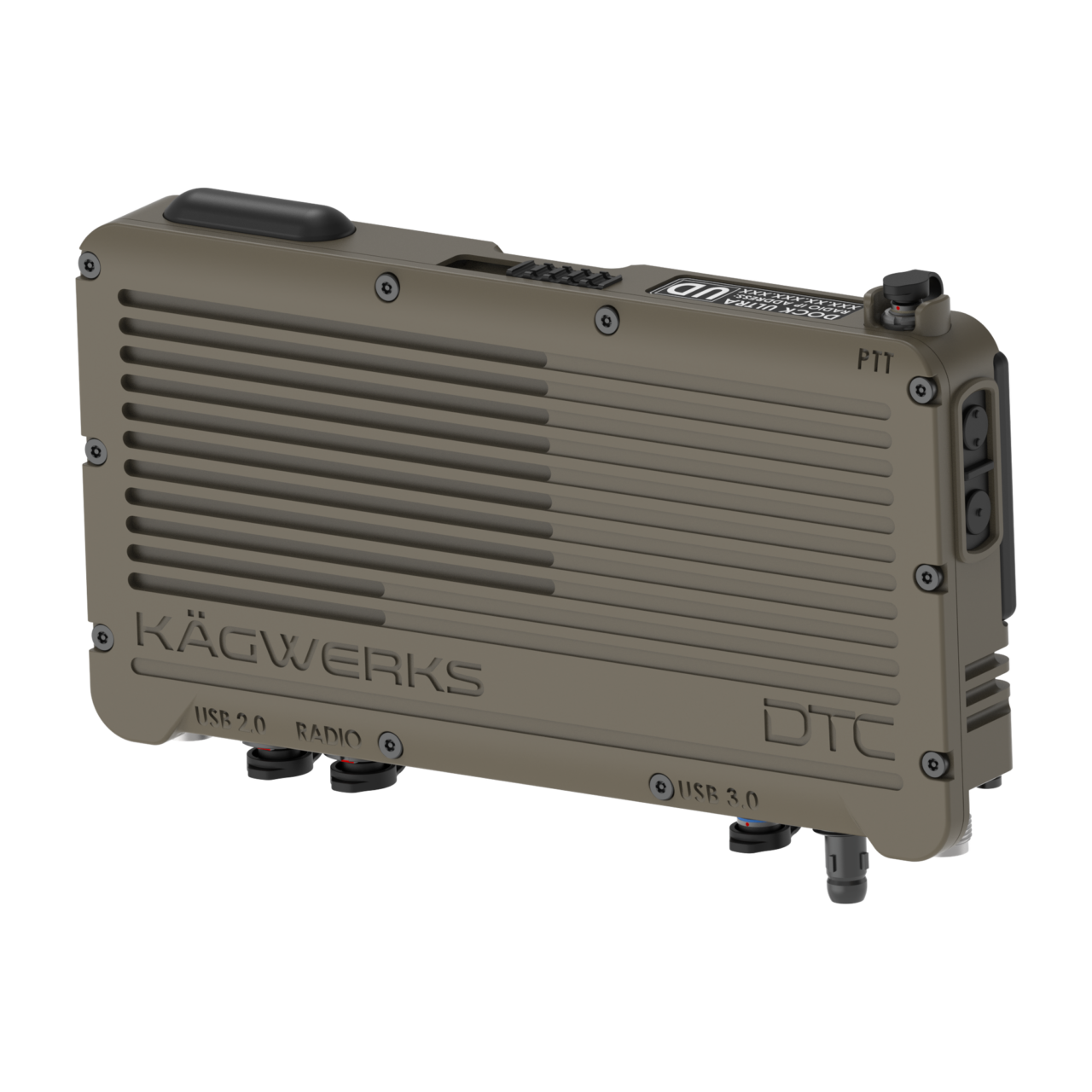

DOCK Ultra
Dismounted

DOCK Ultra

WEARABLE TACTICAL SYSTEM / MULTI-RADIO EDGE-COMPUTE INTEGRATION

32 Mbps radio throughput. One wearable network. DOCK Ultra is the ultimate tactical communications integrator as part of the larger Soldier Platform System.

Book A Demo
INNOVATION AT OUR CORE

EDGE COMPUTE, CARRIED ON THE OPERATOR

Unmatched processing power and advanced mesh communications with the operator in a compact, wearable form. DOCK Ultra fuses an NVIDIA Jetson Orin NX AI module, the DTC Blue 30 radio, and a Nett Warrior end-user device into one chest or back-mounted package, so tactical AI, ATAK plug-ins, and mesh connectivity run on the soldier rather than across a stack of separate containers. That consolidation strips out the cabling and connectors that slow an operator down. Built around a modular radio bay, the package outlasts any single radio it carries, giving programme managers a platform designed to grow with the mission.

MORE INTEGRATED SOLUTIONS

ONE PLATFORM, EVERY RADIO THE MISSION NEEDS

Radio-agnostic and MANET-radio-agnostic by design, DOCK Ultra hosts the DTC Blue 30 alongside other supported radio boards, so the choice of waveform follows the mission rather than the mount. A direct connection to the EUD, dual Nett Warrior ports, and programmable USB support keep the radio, the device, and ISW-connected peripherals on one managed network rather than several competing links. ATAK plug-ins and Nett Warrior compatibility push shared position and sensor data down to the individual operator and back up the chain of command. Squad and section connectivity holds as one system, not a combination of parts.

PROVEN RESILIENCE

HARDENED FOR THE ENVIRONMENT IT DEPLOYS INTO

Wearable hardware has to survive the conditions operators are deployed in. Built to MIL-STD-810H in a low-profile, chest or back-mounted form factor, DOCK Ultra holds compute and radio steady through movement and impact. A continuous-tension 180-degree hinge and a quick-release hinge lock enable operators to reposition the platform fast. Resilient in the harshest environments, DOCK Ultra holds when communications cannot afford to fail.

LEARN MORE

AI COMPUTE

NVIDIA Jetson Orin NX module. Real-time tactical AI and edge analytics carried on the operator.

RADIO-AGNOSTIC

Hosts the DTC Blue 30 and other supported MANET radio boards in one platform.

NETT WARRIOR

Dual Nett Warrior ports and direct EUD connection, with ISW personal area network support.

WEARABLE

Chest or back-mounted, low-profile build with a continuous-tension 180-degree hinge.

RUGGED

Built to MIL-STD-810H for dismounted field conditions.

SITUATIONAL AWARENESS

ATAK plug-ins and Nett Warrior connectivity for shared position and sensor data.

PERIPHERAL INTEGRATION

Programmable USB and ISW options drive ENVG-B and soldier-worn peripherals.

Architecture Radio-agnostic, chest or back-mounted wearable operator's package.
Integrated Radio DTC Blue 30, up to 32 Mbps throughput.
AI Compute NVIDIA Jetson Orin NX module for real-time analytics.
End-User Device Samsung S23TE, USB-C direct connect.
Connectivity Wi-Fi 5, Bluetooth 5.0, GPS, real-time clock.
Interfaces Dual Nett Warrior ports. USB 3.0/2.0 with power delivery. Programmable active USB for ISW-connected ENVG-B and soldier-worn peripherals.
Personal Area Network ISW (Intra-Soldier Wireless) compatible.
Status Indication LED indicator for radio power and operational status.
RF Performance RF performance is governed by the installed radio module (DTC Blue 30 or other supported board), not by DOCK Ultra itself.
Dimensions 186mm x 130mm x 54mm.
Weight 48 oz approx., without phone.
Hinge Continuous-tension, 180-degree hinge.
Hinge Lock Mechanism Allows quick-release movement.
Mounting Chest or back-mounted. Plate carrier and chest rig compatible.
Military Standards MIL-STD-810H.
MISSION OUTCOME

DOCK Ultra integrates the DTC Blue 30 radio, an NVIDIA Jetson Orin NX AI module, and a Nett Warrior end-user device into a single radio-agnostic, chest or back-mounted package for the dismounted operator. For military programmes fielding multiple radio types and real-time tactical AI with the individual operator, DOCK Ultra consolidates the battlefield network into one high-performance platform that grows with the mission.
