FLYK-125
Transportable Systems

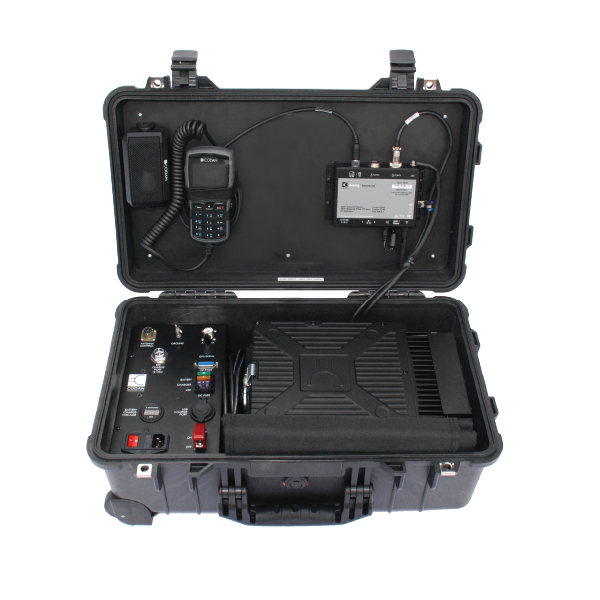

FLYK-125

TRANSPORTABLE HF RADIO SYSTEM

The FLYK-125 is a transportable HF radio system built on the Codan Envoy X2 software defined radio, delivering 125 W secure voice and data over 1.6 to 30 MHz from a rugged airline compatible case.

Book a Demo
INNOVATION AT OUR CORE

ENVOY X2 SDR IN A READY-TO-DEPLOY CASE

Rapid deployment should not mean reduced capability. Built into a rugged transport case, the FLYK-125 delivers full Envoy X2 SDR performance in a self-contained package that can operate as a mobile or base station HF transceiver. A colour, multi-lingual interface and USB Smartloader keep operation simple, while dual USB charging supports tablets, laptops, and smartphones in the field.

MORE INTEGRATED SOLUTIONS

SECURE VOICE, DATA AND INTEROPERABLE CONNECTION

Remote and coalition operations need secure communications that connect cleanly with wider networks. The platform supports ALE, 3G ALE, MIL-STD data, AES-256 voice and data encryption, CES-128 voice encryption, MELPe, and Codan Digital Voice. It can interface with external crypto devices, tablets, laptops, Codan RIOS, and optional SmartLink Wi-Fi for control through Codan Xtend or Virtual Control Point.

PROVEN RESILIENCE

RUGGED, SEALED AND POWERED ANY WAY

Field teams need power flexibility when infrastructure is unavailable. The system operates from AC mains, external DC, or an internal sealed Gelcell battery for short-term backup. With splash-proof sealing when closed and latched, surge and voltage protection, over-temperature protection, and stable operation from -30°C to +60°C, it is built for demanding transportable communications roles.

LEARN MORE

125 W RF OUTPUT

125 W PEP plus or minus 1 dB (two-tone or voice), user-programmable, across a 1.6 to 30 MHz transmit range.

ENVOY X2 SDR CORE

Full Codan Envoy X2 software defined radio capability for secure voice and data in one transportable case.

MULTI-SOURCE POWER

Operates from 100 to 240 V AC, 11 to 15 V DC, or internal 12V 8Ah battery with up to 3 hours backup.

AIRLINE TRANSPORTABLE

Rugged case designed to meet international airline regulations for checked-in luggage; 19.8 kg.

STANDARDS-BASED ALE

FED-STD-1045, JITC certified MIL-STD-188-141B and STANAG 4538 3G ALE with MIL-STD-188-110A/B data.

SECURE ENCRYPTION

AES-256 voice and data plus CES-128 voice, with Codan second generation Digital Voice and MELPe.

RIOS AND XTEND READY

Interfaces to Codan RIOS interoperability suite; optional 2240 Smartlink Wi-Fi for Xtend app and VCP control.

Core radio Codan Envoy X2 software defined radio (SDR)
Channels and scanning Up to 1000 simplex or semi-duplex; up to 20 scan groups; simultaneous Selcall (ALE/CCIR) and voice scanning; dwell time 125 ms to 9.9 s, adjustable
Contacts list Up to 500 entries
ALE CCIR 493-4 Selcall; FED-STD-1045 / MIL-STD-188-141B ALE (JITC Certified); 3G ALE (STANAG 4538)
Data MIL-STD-188-110A/B (STANAG 4539)
Digital voice MELPe (STANAG 4591) / Codan Digital Voice
Encryption AES-256 / CES-128
Interfaces USB programming port via 2220 Envoy radio Handset; dual USB-A charge port; serial RS232; auxiliary GPIO; external DC and solar inputs; RF I/O 50 ohm N-Type; antenna control port; AC mains IEC-C14
GPS Embedded receiver/antenna (GPS and GLONASS)
Language support Multiple language user interface and documentation
Compliance CE, FCC, IC, AS/NZS 4770:2000, AS/NZS 4355:2006
Frequency range (transmit) 1.6 to 30 MHz
Frequency range (receive) 250 kHz to 30 MHz
Frequency stability plus or minus 0.3 ppm from -30 to +60 degrees C
RF output power 125 W PEP plus or minus 1 dB (two-tone or voice), user-programmable
Modes SSB USB, LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), Software Defined, Independent Sideband ISB (B71, B8W, B9W)
Duty cycle 100% voice / data
RF output impedance 50 ohm
Dimensions 55.9 W x 35.1 H x 22.9 D cm (22.0 x 13.8 x 9.0 in)
Weight 19.8 kg (44 lb)
AC operating range 100 to 240 V AC plus or minus 10% (50 / 60 Hz)
External DC input 11 to 15 V DC
Back up battery 12V / 8Ah sealed Gelcell; battery life up to 3 hours, subject to operational specifics
Protection AC surge / over-voltage / under-voltage / over-temperature; DC short circuit 30A user-replaceable fuse
Temperature range -30 to +60 degrees C; 95% RH maximum, non-condensing
Sealing O-Ring seal, splash proof with lid closed and latched
DATASHEET FLYK-125 Datasheet
MISSION OUTCOME

FLYK-125 carries the full Codan Envoy X2 software defined radio into the field in a rugged airline transportable case, putting 125 W of secure HF voice and data over 1.6 to 30 MHz wherever a mission lands. AC, DC or internal battery power, JITC certified ALE, AES-256 encryption and RIOS interoperability keep a remote network connected when fixed infrastructure is gone. Backed by DTC engineering and worldwide service, the FLYK-125 deploys fast and stays on the air.
