FLYK-150

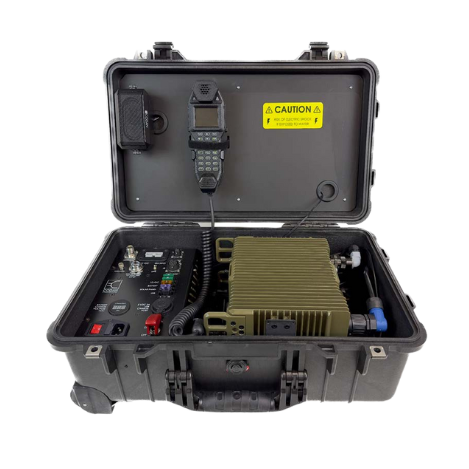

TRANSPORTABLE HF RADIO SYSTEM

The FLYK-150 is a transportable HF radio system built on the Codan Sentry-H 6120-BM software defined radio, delivering 150 W secure voice and data over 1.6 to 30 MHz from a rugged airline compatible case.

Book a Demo
INNOVATION AT OUR CORE

RAPID DEPLOYMENT

Rapid response teams need full HF capability without fixed infrastructure. Built into a rugged transport case, the FLYK-150 delivers Sentry-H 6120-BM SDR performance in a self-contained package that can operate as a mobile or base station HF transceiver. The deployable format keeps setup practical, so teams can establish long-range communications quickly in remote or temporary sites.

MORE INTEGRATED SOLUTIONS

SECURE VOICE, DATA AND INTEROPERABLE CONNECTION

Field networks need secure communications that connect with wider operational systems. The platform supports secure HF voice and data across the full operating band, with interoperability options for external devices and connected communications workflows. Designed around Codan HF architecture, it fits into broader radio networks where reliable long-range links are essential.

PROVEN RESILIENCE

RUGGED, SEALED AND POWERED ANY WAY

Transportable communications have to work wherever the mission lands. Built for field deployment, the system supports flexible power options and rugged operation in demanding environments. Its sealed case format protects critical radio equipment during transport and setup, giving teams a dependable HF communications platform when infrastructure is limited or unavailable.

LEARN MORE

150 W RF OUTPUT

150 W PEP plus or minus 1 dB (two-tone or voice), user-programmable in 1W steps, across 1.6 to 30 MHz.

SENTRY-H 6120-BM SDR

Full Codan Sentry-H 6120-BM software defined radio with latest-generation DSP, FPGA and SoC technology.

MULTI-SOURCE POWER

Operates from 100 to 240 V AC, 11 to 35 V DC, or internal 12V 8Ah battery with up to 2 hours backup.

AIRLINE TRANSPORTABLE

Rugged case designed to meet international airline regulations for checked-in luggage; 20.7 kg.

STANDARDS-BASED ALE AND DATA

FED-STD-1045, JITC certified MIL-STD-188-141B, STANAG 4538 3G ALE; MIL-STD-188-110A/B data up to 19k2 bps.

SECURE ENCRYPTION AND ECCM

AES-256 and CES-128 COMSEC with ECCM frequency hopping at 6/12/25 hops per second.

DIGITAL VOICE AND RIOS

Second generation TWELP and MELPe Digital Voice; interfaces to Codan RIOS interoperability suite.

Core radio Codan Sentry-H 6120-BM software defined radio (SDR)
Channels and scanning Up to 1000 simplex or semi-duplex; up to 20 scan groups; simultaneous Selcall (ALE/CCIR) and voice scanning; dwell time 125 ms to 9.9 s, adjustable
Contacts list Up to 500 entries
ALE FED-STD-1045; JITC certified MIL-STD-188-141B; STANAG 4538 3G ALE
Data MIL-STD-188-110A/B (STANAG 4539) up to 19k2 bps
Selcall CCIR 493-4 proprietary and open standard
Digital voice TWELP: 2400/1200/600/480/300 bit/s; MELPe (STANAG 4591): 2400/1200 bit/s
Encryption / COMSEC AES-256 / CES-128; ECCM 6/12/25 hops per second
Interfaces USB programming port via 2320 Smart Handset; dual USB-A charge port; auxiliary GPIO (19way MIL-C-26482); external DC and solar inputs; RF I/O 50 ohm N-Type; antenna control port; AC mains IEC-C14
GPS Embedded receiver/antenna (GPS and GLONASS)
Compliance CE, FCC Part 90, AS/NZS 4770, AS/NZS 4355, IC RSS-125
Frequency range (transmit) 1.6 to 30 MHz
Frequency range (receive) 250 kHz to 30 MHz
RF output power 150 W PEP plus or minus 1 dB (two-tone or voice), user-programmable in 1W steps (low / medium / high)
Modes SSB USB, LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), ISB (B7D or B2B), Software Defined
Duty cycle 100% voice / data
RF output impedance 50 ohm
Dimensions 55.9 W x 35.1 H x 22.9 D cm (22.0 x 13.8 x 9.0 in)
Weight 20.7 kg (45.6 lb)
AC operating range 100 to 240 V AC plus or minus 10% (50 / 60 Hz)
External DC input 11 to 35 V DC
Back up battery 12V / 8Ah sealed Gelcell; battery life up to 2 hours, subject to operational specifics
Protection AC surge / over-voltage / under-voltage / over-temperature; DC short circuit 30A user-replaceable fuse
Temperature range -30 to +60 degrees C; 95% RH maximum, non-condensing
Sealing O-Ring seal, splash proof with lid closed and latched
DATASHEET FLYK-150 Datasheet
MISSION OUTCOME

FLYK-150 carries the full Codan Sentry-H 6120-BM software defined radio into the field in a rugged airline transportable case, putting 150 W of secure HF voice and data over 1.6 to 30 MHz wherever a mission lands. AC, DC or internal battery power, JITC certified ALE, AES-256 encryption, ECCM hopping and RIOS interoperability keep a remote network connected when fixed infrastructure is gone. Backed by DTC engineering and worldwide service, the FLYK-150 deploys fast and stays on the air.
