The RC50-C is HF email software delivering fast, error free email over HF radio at adaptive data rates up to 19200 bit/s, with STANAG 5066 interoperability and AES-256 encryption.
Adaptive data rates up to 19200 bit/s with an ISB capable transceiver, controlled by BER measurements for the fastest reliable rate.
STANAG 5066 V1.2 Annex F.12 Compressed File Transport Protocol ensures interoperability with other manufacturers' systems.
Over-the-air transmissions encrypted with AES-256, plus support for third party software for full end-to-end encryption.

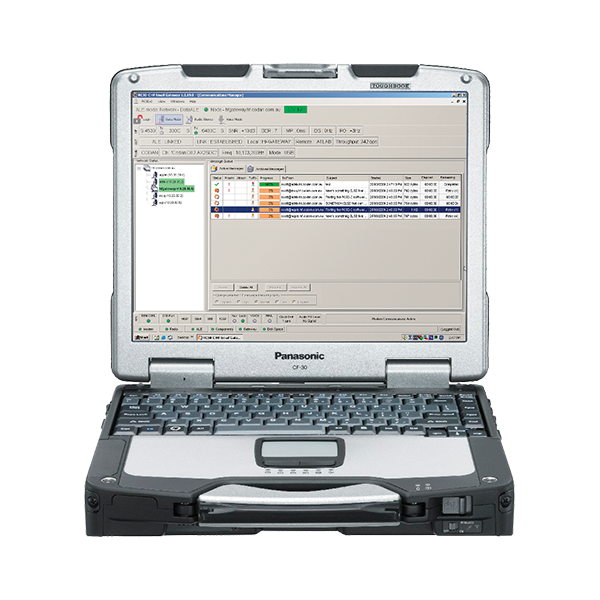

Operated through a standard POP3 email client running in the background on a Windows PC over a single USB port.
Enhanced CALM and ALE linking selects the best available channel for each data session, simplifying operation.
Configurable as a gateway to a wider Intranet or WAN for a fully integrated field email service.
Supports MIL-STD-188-110A and 110B, STANAG 4539, 4285, 4415, and 4529 waveforms.
| Function | HF email software for fast, error free email over HF radio |
|---|---|
| Protocol | STANAG 5066 V1.2 Annex F.12 Compressed File Transport Protocol (CFTP) |
| Data rate control | Adaptive, controlled by BER measurements; ISB 75 to 19200 bit/s, SSB 75 to 9600 bit/s |
| Data interface | USB 2.0 or RS232 serial |
| Encryption | AES-256 bit over the air; supports customer-defined third party email encryption |
| Email control | Standard POP3 / SMTP compliant email client |
| Linking | Enhanced CALM and ALE; configurable Intranet / Internet gateway |
| Supported waveforms | MIL-STD-188-110A, MIL-STD-188-110B, STANAG 4539, STANAG 4285, STANAG 4415, STANAG 4529 |
| Recommended transceivers | Envoy X2, Manpack 2110 and 2110M, Sentry-H 6120-BM |
| Minimum processor | Intel Pentium IV 800 MHz or better |
|---|---|
| Minimum RAM | 512 MB or more |
| Storage | 6 GB or more of free space for email storage |
| Operating system | Windows XP Professional SP2 or Windows 2000 Professional SP4; compatible with Windows 7 |
| Drive | CD-ROM drive |
| Email server | Access to any commercial POP3 / SMTP compliant email server for internet connectivity |
RC50-C brings dependable email to operators working far beyond any fixed network. Running on a standard Windows PC with Codan HF transceivers and RM50 data modems, the software delivers adaptive data rates up to 19200 bit/s, AES-256 encryption, and STANAG 5066 interoperability with allied systems. A standard POP3 client keeps the experience familiar, while a gateway mode bridges HF stations to internet email. Designed and manufactured by DTC, a Codan Company, RC50-C gives military, commercial, and NGO teams HF email they can rely on.
