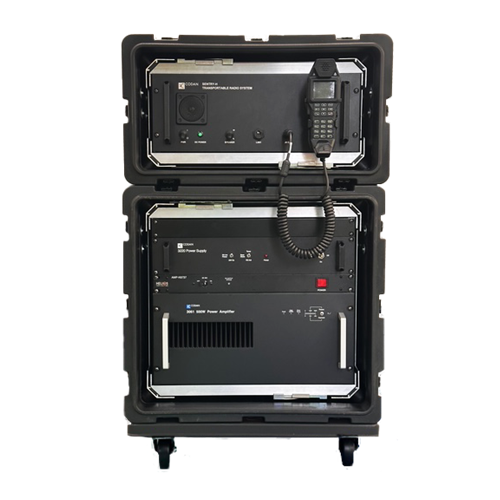

Sentry-H Transportable Radio System

TRANSPORTABLE RADIO SYSTEM (TRS) / SOFTWARE DEFINED RADIO

A rugged, software-defined HF station delivering 150 W of RF output, expandable to 500 W, for voice and data wherever the mission has to move.

Book A Demo
INNOVATION AT OUR CORE

SOFTWARE AT THE CORE

HF standards keep evolving. The Sentry-H Transportable Radio System runs on the software-defined 6120-BM core, so new waveforms, calling standards, and encryption arrive by software update. No depot return. Second-generation digital voice holds intelligible speech as channels degrade, and the same proven core carries thousands of field hours behind every build.

MORE INTEGRATED SOLUTIONS

ONE STATION. EVERY CONTROL POINT.

A transportable radio system has to fit the network it joins. The Sentry-H TRS puts the radio at the centre of an IP station: multiple control points at once, from a 2330 Desk Console to a Virtual Control Point across the network. JITC-certified ALE and coalition-standard waveforms reach partner and legacy HF networks, and automatic link management holds the best channel without operator input.

PROVEN RESILIENCE

RUGGED TO MOVE. BUILT TO HOLD.

Field service is unforgiving. The Sentry-H ships in rugged, shock-absorbing transit cases and runs at 100% continuous duty from -30 °C to +50 °C. If VSWR or heat spikes, the amplifier drops to bypass so the station stays on air. AES-256 COMSEC and ECCM frequency hopping protect every link. Behind it stands DTC: sovereign engineering, more than 65 years of HF development, and support across 165+ countries.

LEARN MORE

SOFTWARE DEFINED

6120-BM SDR core (DSP, FPGA, SoC). Waveforms, standards, and digital voice added by software update.

150 W TO 500 W

150 W PEP output, programmable in 1 W steps. Optional 3061 HPA lifts output to 500 W PEP.

IP REMOTE CONTROL

2x LAN, 1x WAN, 8-port 1 Gbit/s switch. Multiple simultaneous control points, including Virtual Control Point.

RUGGED & TRANSPORTABLE

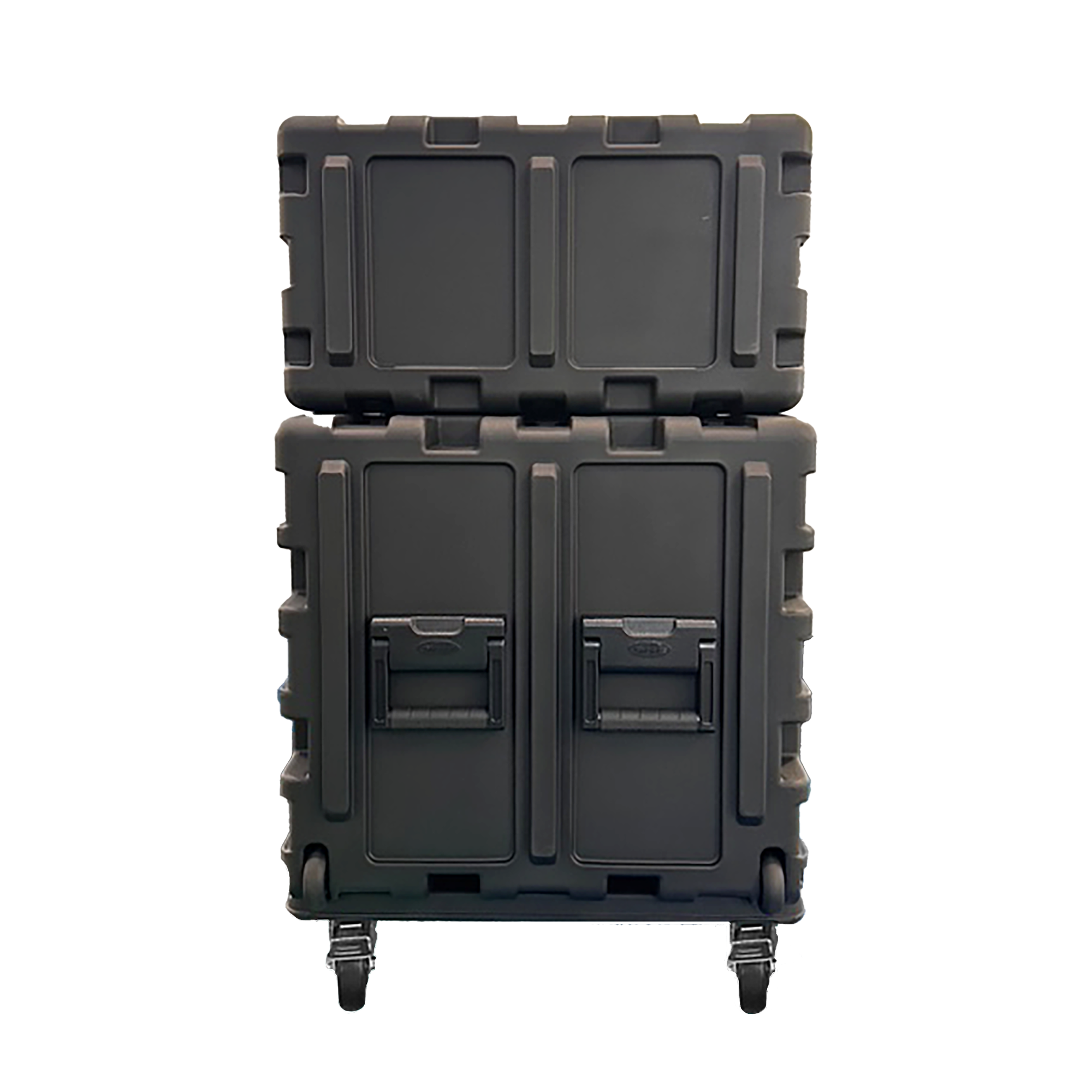

Stackable shock-absorbing transit cases with matching caster board. Retro Fit kit for customer-sourced cases.

ENCRYPTION & ECCM

AES-256, DES-56, and CES-128 COMSEC. ECCM frequency hopping up to 25 hops per second.

ALE / INTEROPERABILITY

MIL-STD-188-141B (JITC certified), FED-STD-1045, and 3G ALE (STANAG 4538). Coalition and legacy HF reach.

CONTINUOUS DUTY

Rated for 100% continuous duty in voice and data. Full output held across the mission window.

Channels Up to 1,000 entries
Contacts Up to 500 entries
HF Networks Up to 20 networks, simultaneous scanning
Presets Up to 100 user-defined presets
SDR Architecture 6120-BM: high-performance DSP, FPGA, and System on Chip (SoC)
Data Standards MIL-STD-188-110A/B (STANAG 4539), up to 19.2 kbps; MIL-STD-188-110D (Appendix C)
ALE / Calling Standards MIL-STD-188-141D (Appendix A, C); MIL-STD-188-141B ALE (JITC certified); FED-STD-1045 ALE; 3G ALE (STANAG 4538)
Digital Voice Second-generation (TWELP) with ECCM; STANAG 4591 (MELPe)
Connectivity 2x LAN, 1x WAN, USB; 8-port 1 Gbit/s Ethernet switch; 3G ALE TFTP file transfer
Control Points 2330 Desk Console, Virtual Control Point; multiple connected control points supported
GPS RFU: external antenna. 2320 Handset: embedded receiver (GPS, GLONASS, Beidou)
Encryption / COMSEC AES-256, DES-56, CES-128; ECCM up to 25 hops/sec
Programming TPS-M Radio Programming Software, USB flash drive
Language Support English, Spanish, French, Arabic, Dari, Pashto, Portuguese, Polish (additional on request)
Certifications FCC Part 90; AS/NZS 4770; AS/NZS 4355; IC RSS-125; CE compliance (EU sales option required)*
Warranty 3 years (radio system and optional HPA system)
Frequency Range (Tx) 1.6 to 30 MHz (optional 1.5 to 30 MHz)
Frequency Range (Rx) 250 kHz to 30 MHz
Frequency Stability +/- 0.3 ppm from -20 °C to +60 °C
Output Power (Radio) 150 W PEP +/- 1 dB (two-tone or voice), user-programmable in 1 W steps (low/medium/high)
Output Power (Optional HPA) 500 W PEP +/- 1 dB, 300 W average
Modes SSB USB/LSB (J3E), AM (H3E), CW (J2A), AFSK (J2B), FSK (F1B), ISB (B7D or B2B), software defined
Spurious & Harmonic Emissions Radio: >65 dB below PEP. Optional HPA: better than 60 dB below PEP
Intermodulation Distortion Radio: >31 dB below PEP. Optional HPA: better than 32 dB below PEP
Duty Cycle Radio: 100% voice and data. Optional HPA: 100% normal speech over full temperature range; 100% all modes to +45 °C ambient
Protection Radio: reflected power limited at 10 W PEP; thermal protection. Optional HPA: bypass to 125 W PEP on excess VSWR, over-temperature, or internal fault
Size (Radio, case w/ 2" lids) 34.29 x 60.96 x 80.01 cm (13.5 x 24 x 31.5 in)
Size (Radio, rack only, 4RU) 17.8 x 48.3 x 49 cm (7.01 x 19.02 x 19.29 in)
Size (Optional HPA case) 56.52 x 60.96 x 87.63 cm (22.25 x 24 x 34.5 in), 2" front lid / 5" rear lid
Weight (Radio) Case: 40 kg (88.18 lb). Rack only: 18.2 kg (40.12 lb)
Weight (Optional HPA) Case: 59 kg (130.1 lb)
Input Voltage Radio: 100 to 240 V AC. Optional HPA: 100 to 240 V AC +/- 10%, 50/60 Hz single phase
Supply Current Tx: 11 A to 20 A (two-tone) or 8 A average speech. Rx: <0.6 A typical, 0.9 A maximum
Temperature Range Radio: -30 °C to +50 °C. Optional HPA: -10 °C to +50 °C
Altitude <2000 m
MISSION OUTCOME

The Sentry-H Transportable Radio System delivers software-defined HF voice and data from a rugged station that sets up, tears down, and moves under pressure. Built for military and public safety programmes, it holds 150 W and expands to 500 W when the mission demands it. From forward teams to fixed sites, the Sentry-H Transportable Radio System keeps the link up through every relocation.
